KCO-FTB08C FTTA FTTH 8port Plastic FTB Fiber Optical Terminal Box SC/APC ABS+PC
KCO-FTB08C is small size of plastic fiber optic terminal box with 8 simplex SC port.
Ex-work color is white color, can change to grey or black color as customer request.
Logo printing is free for order more than 1K (pcs).
Logo lettering is free for order more than 100K (pcs)
| Specifications | |
| Model | KCO-FTB08C |
| Dimension | 130*199*28.5mm |
| Max capacity | 8 fibers |
| Cable port | 2in for feeder cable 15mm, 8port SC adapter |
| Color | white |
| Material | ABS + PC |
| Accessory list | |
| Name of Material | Specification |
| Heat shrinkable tube | 3.0*45mm |
| Nylon cable ties | 3*120mm |
| Plastic expansion tubes | 6 |
| Cross Countersunk head tapping screws | M3.5*25 |
| Adapter | SC/SX |
| Packing Information | |
| Carton size | Gross weight |
| 57*43*41cm | 23KGS |
Application:
- Indoor usage.
- Used for wall-mounted applications
- Local Area Network
- Fiber to the home (FTTH)
- Wide Area Network
- CATV Network
- FTTX System
- Test Instruments

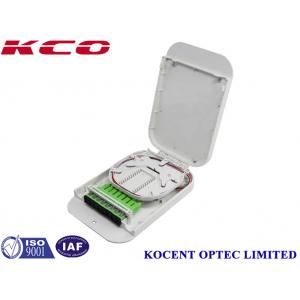

Product Photos:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
